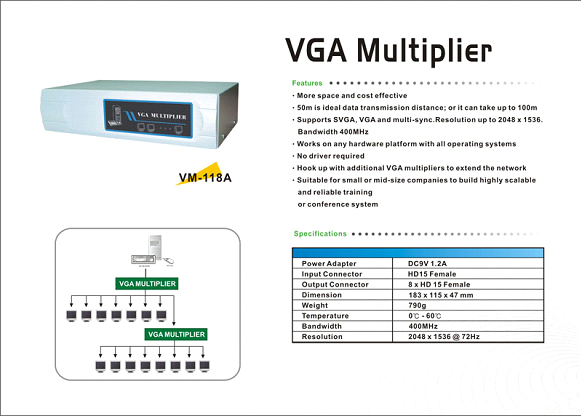

This unit is capable of delivering video out to two monitors at a time. The high-resolution VGA Splitter feature is ideal for high quality up to 64 monitors to share the information through host computers.
Features:
• More space and cost effective.
• 50m is ideal data transmission distance; or it can take up to 100m.
• Supports SVGA, VGA and multi-sync. Resolution up to 2048 x 1536. Bandwidth 400MHz.
• Works on any hardware platform with all operating systems.
• No drivers required.
• Hook up with additional VGA multipliers to extend the network.
• Suitable for small or mid-size companies to build highly scalable and reliable training or conference system..
Specification:

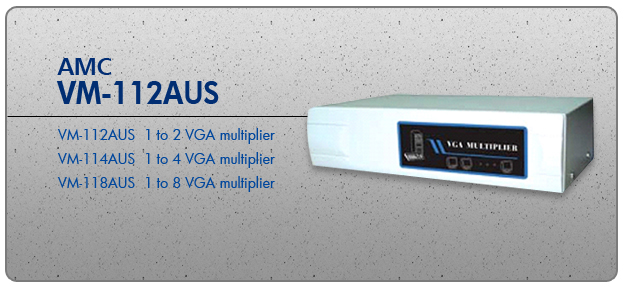

Item No. |
AMC VM-112AUS |
AMC VM-114AUS |
AMC VM-118AUS |
Power Adapter |
DC 9V, 500mA |
DC 9V, 500mA |
DC 9V 1.2A |
Input Connector |
HD 15 Female |
HD 15 Female |
HD 15 Female |
Output Connector |
2 x HD 15 Female |
4 x HD 15 Female |
8 x HD 15 Female |
Dimension |
183x115x47mm |
183x115x47mm |
183x115x47mm |
Weight |
580g |
650g |
790g |
Temperature |
0 C ~ 60 C |
Bandwidth |
400MHz |
Resolution |
2048x1536 / 72Hz |
|
